SuchTree is motivated by the observation that the memory usage of distance matrixes grows quadratically with taxa, while for trees it grows linearly. A matrix of 100,000 taxa is quite bulky, but the tree it represents can be made to fit into about 7.6MB of RAM if implemented using only C primitives. This is small enough to fit into L2 cache on many modern microprocessors. This comes at the cost of traversing the tree for every calculation (about 16 hops from leaf to root for a 100,000 taxa tree), but, as these operations all happen on-chip, the processor can take full advantage of pipelining, speculative execution and other optimizations available in modern CPUs. And, because SuchTree objects are immutable, they are thread-safe. You can take full advantage of modern multicore chips.

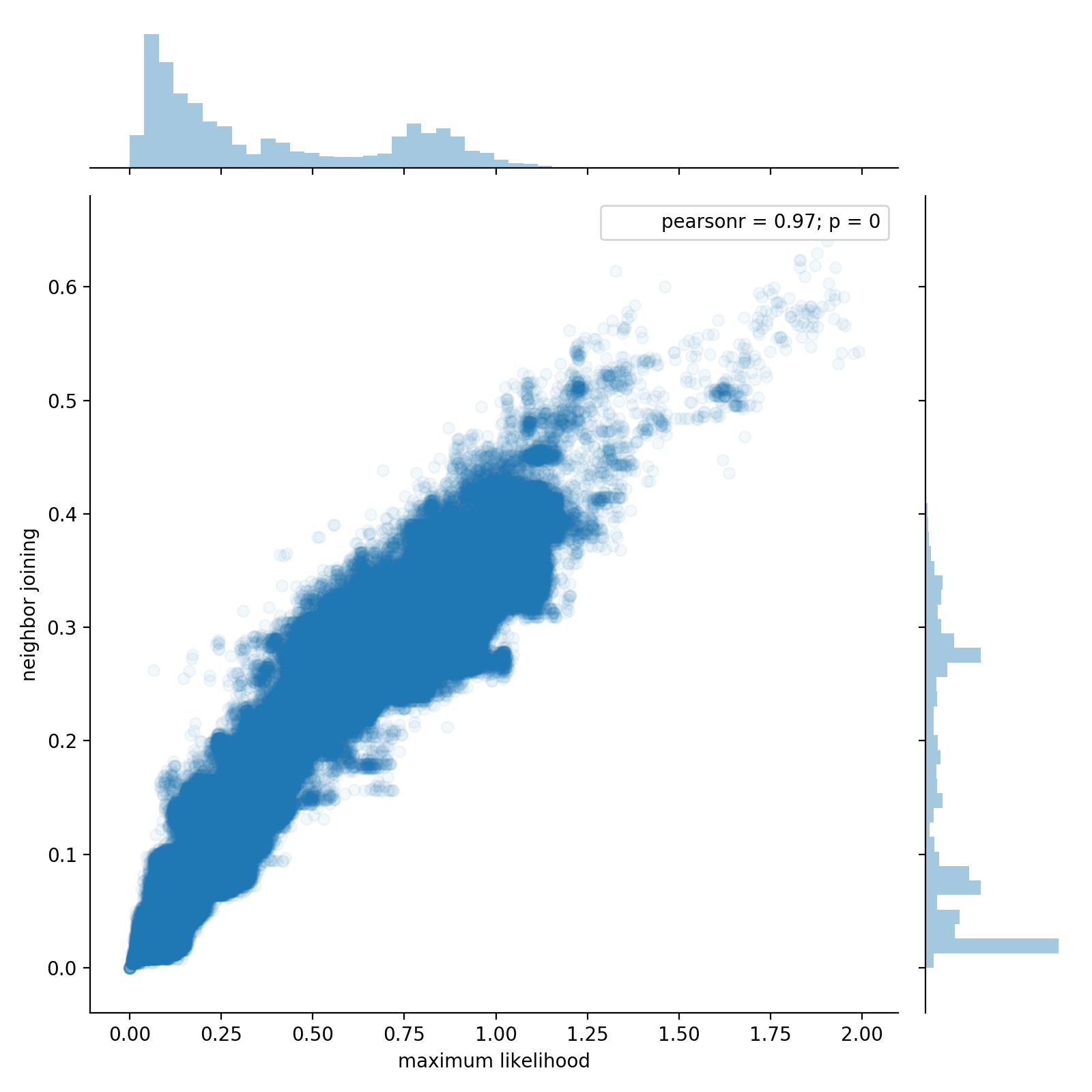

Here, we use SuchTree to compare the topology of two trees built from the same 54,327 sequences using two methods : neighbor joining and Morgan Price's FastTree approximate maximum likelihood algorithm. Using one million randomly chosen pairs of leaf nodes, we look at the patristic distances in each of the two trees, plot them against one another, and compute correlation coefficients.

On an Intel i7-3770S, SuchTree completes the two million distance calculations in a little more than ten seconds.

from SuchTree import SuchTree
import random

T1 = SuchTree( 'data/bigtrees/ml.tree' )
T2 = SuchTree( 'data/bigtrees/nj.tree' )

print( 'nodes : %d, leafs : %d' % ( T1.length, len(T1.leafs) ) )
print( 'nodes : %d, leafs : %d' % ( T2.length, len(T2.leafs) ) )

nodes : 108653, leafs : 54327
nodes : 108653, leafs : 54327

N = 1000000
v = list( T1.leafs.keys() )

pairs = []
for i in range(N) :
    pairs.append( ( random.choice( v ), random.choice( v ) ) )

%time D1 = T1.distances_by_name( pairs ); D2 = T2.distances_by_name( pairs )

CPU times: user 10.1 s, sys: 0 ns, total: 10.1 s
Wall time: 10.1 s


from scipy.stats import kendalltau, pearsonr

print( 'Kendall\'s tau : %0.3f' % kendalltau( D1, D2 )[0] )
print( 'Pearson\'s r   : %0.3f' % pearsonr( D1, D2 )[0] )

Kendall's tau : 0.709
Pearson's r   : 0.969
